不锈钢双层反应釜 中式生产型常压高压负压高温搅拌夹套反应器蒸馏氢化

不锈钢反应釜Stainless Steel Reactor

用途Use

      本设备应用于医药、化工、食品、轻工等行业中的水解、中和、结晶、蒸馏、蒸发等生产过程。反应釜可采用304、316L等不锈钢材料制造。搅拌形式有锚式、框式、桨式等；转动机构可采用摆线针轮减速机、无级变速减速机等；密封装置可采用机械密封；加热冷却可采用夹套、半管、盘管结构；加热方式有蒸汽、电加热、导热油等；以满足耐酸碱、耐高温、耐磨损、抗腐蚀等不同工作环境的工艺环境的工艺需要。可根据用户工艺要求进行设计、制造。

选配工艺：可以根据需求做防腐内衬，反应釜内壁防腐喷涂工艺，可以耐强酸，强碱，高温，低温等工艺处理条件。

The equipment is used in the production processes of hydrolysis, neutralization, crystallization, distillation and evaporation in medicine, chemical industry, food, light industry and other industries. The reactor can be made of 304, 316L and other stainless steel materials. The mixing forms include anchor type, frame type, paddle type, etc; The rotating mechanism can adopt cycloidal pinwheel reducer, stepless speed reducer, etc; The sealing device can adopt mechanical seal; Jacket, half pipe and coil structure can be adopted for heating and cooling; Heating methods include steam, electric heating, heat transfer oil, etc; To meet the process needs of different working environments such as acid-base resistance, high temperature resistance, wear resistance and corrosion resistance. It can be designed and manufactured according to the process requirements of users.

Optional process: the anti-corrosion lining can be made according to the demand, and the anti-corrosion spraying process on the inner wall of the reactor can be resistant to strong acid, strong alkali, high temperature, low temperature and other process treatment conditions.

结构特点Structural Features

●   反应锅由锅身、锅盖、搅拌器、电加热油夹套、支承及传动装置、轴封装置等组成，可以夹套通导热油循环加热或冷却；或夹套设计电热棒或蒸汽半管进行加热。

●   由于用户因生产工艺，操作条件不尽相同，搅拌形式一般有锚式、桨式、蜗轮式、推进式或框式。

●   夹套上开有进排油、溢油、放空及测温电热棒孔。锅体下部开有放料口。

● The reaction pot is composed of pot body, pot cover, agitator, electric heating oil jacket, support and transmission device, shaft seal device, etc. the jacket can be heated or cooled by heat transfer oil; Or jacket design electric heating rod or steam half pipe for heating.

● Due to the different operating conditions of users due to the production process, the mixing forms generally include anchor type, paddle type, worm gear type, push type or frame type.

● The jacket is provided with oil inlet and outlet, oil overflow, vent and temperature measuring electric heating rod holes. The lower part of the pot body is provided with a discharge port.

技术参数/Technical Parameter

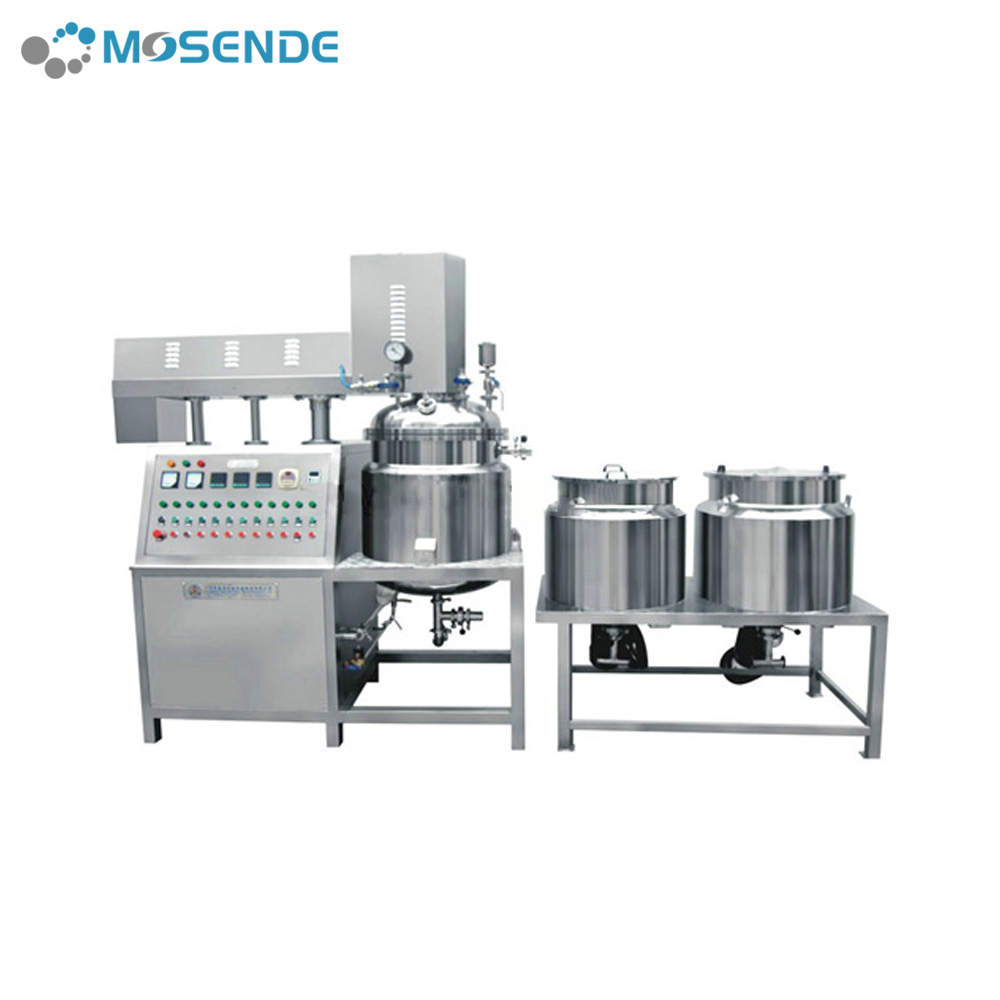

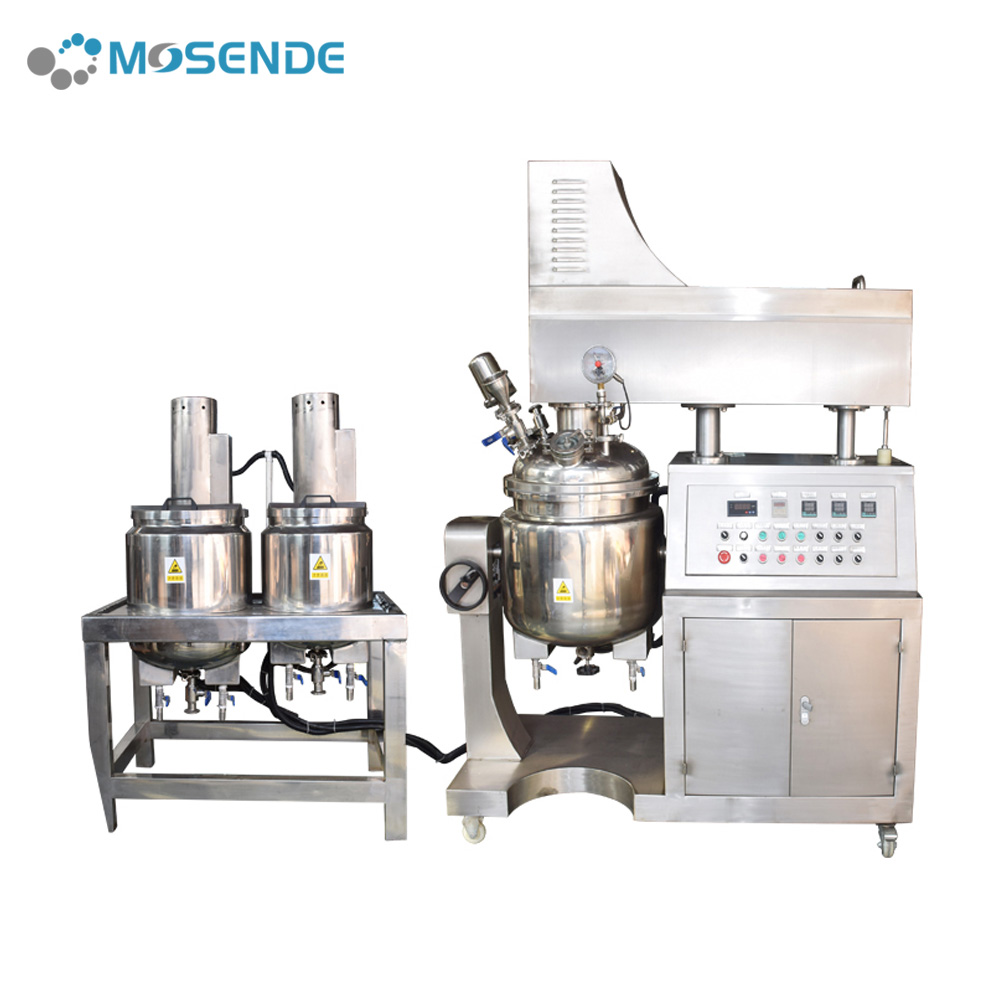

产品图/Product Picture

应用领域/Application Area
